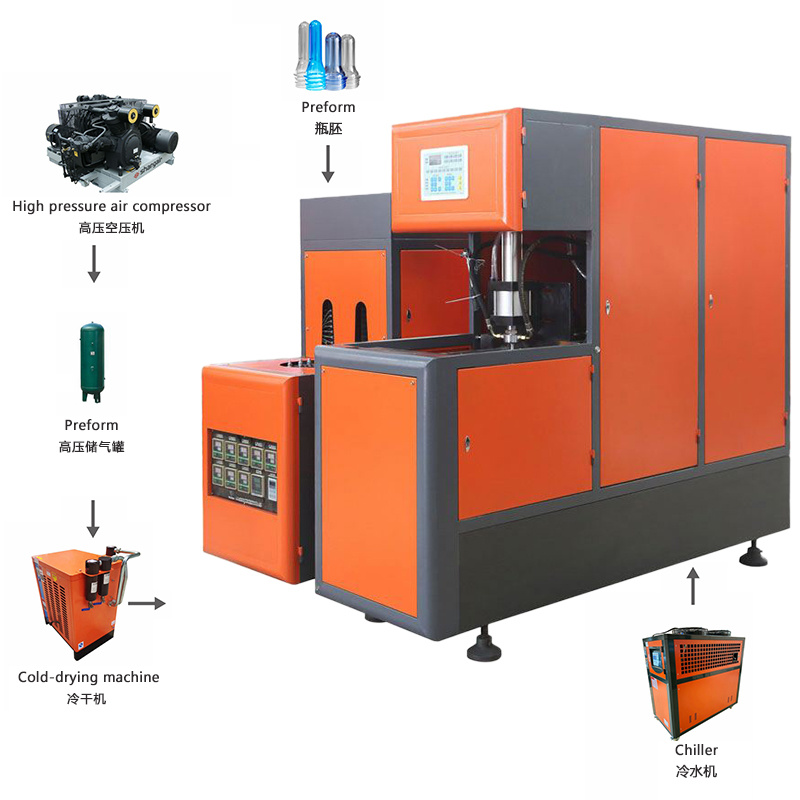

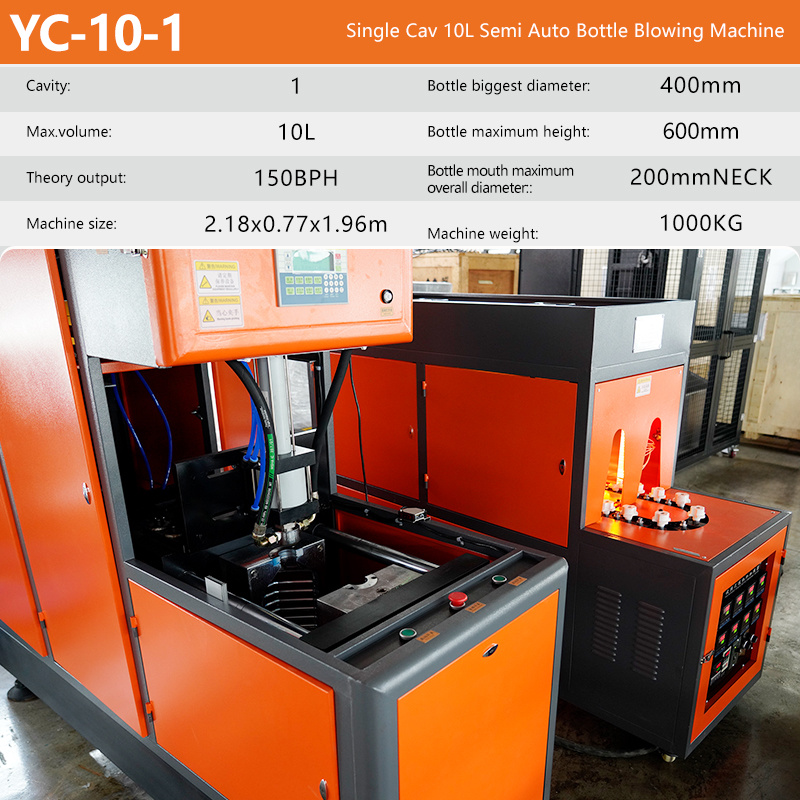

YC-10L-1 Semi Auto Bottle Making Machine

Name: YC-10L-1 Semi Auto Bottle Making Machine
Brand: KlWL Machinery

In the process, the stretching rod is controlled by the servo motor to stretch the bottle embryo.

Key words: bottle blowing machine

● Cavity：1
● Max.volume：5L-10L
● Output BPH：200-250

Classification:

Product Center

YC Series Semi Auto PET Blowing Machine

Get Best Quote

	project	Technical Parameters
Product Specifications	Maximum product capacity (L/cav)	10L
	Output (pcs/h)	200-250BPH
	Maximum diameter of preform (mm)	180mmNECK
	Maximum bottle diameter (mm)	300mm
	Maximum bottle height (mm)	480mm
	Number of cavities	1
Blow Molding Machine	Clamping force (KN)	150
	Mould opening and closing stroke (mm)	340
	Maximum mold size (mm)	380×450
	Mold thickness	Adjustable
	Die spacing (mm)	Adjustable
	Maximum stretching stroke (mm)	500
	Working pressure (Mpa)	0.8-1.0
	Operating air pressure consumption (1tr/min)	560
	Blowing air volume (Mpa)	1.2-2.8
	Blowing air pressure consumption (1tr/min)	650
	Machine size (L×W×H)(m)	2.3×0.77×1.96
	Machine weight (KG)	1000
Oven	Temperature grade (segment)	8
	Heating time (seconds)	90-200
	Voltage (V)	220
	Frequency(HZ)	50/60
	Total power(KW)	15-40
	Oven size (length x width x height)	2.37×0.68×1.65m
	Oven weight (KG)	380KG

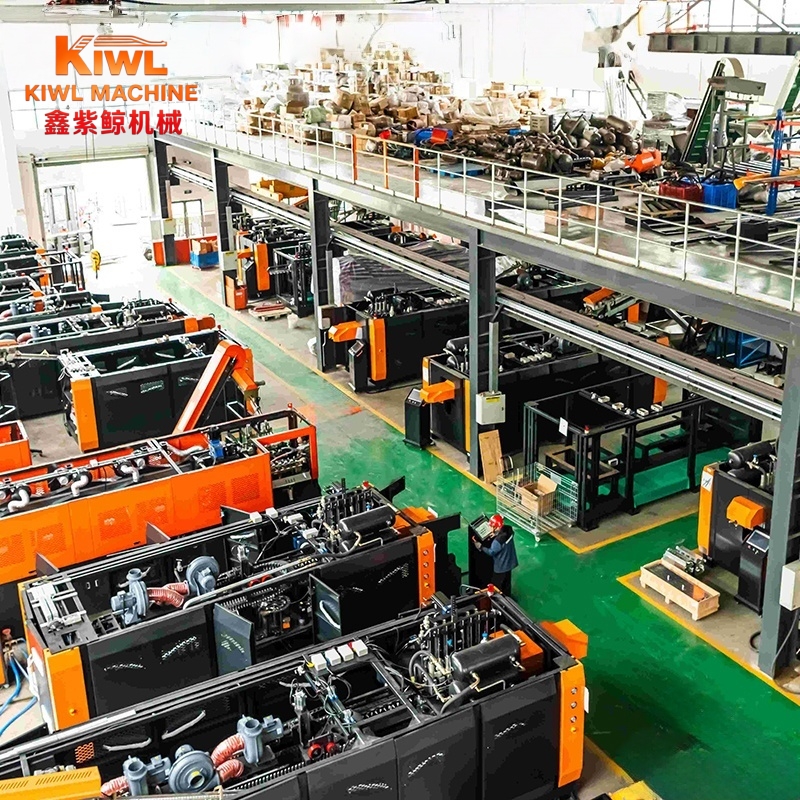

Delivery Display

Prev： J2L2 2 Cavity Plastic Jar Making Machine

Next： YC-20L-1 Semi Auto Plastic Blowing Machine
